RRDTool Output: 1233x607

This is actually generating an image. It also works ok for me.

adam. On 2017-10-31 17:47:55, Jesper Frank Nemholt jfn@dassic.com wrote: Hi!

Correct it's not a numeric OID, but it always worked, with with > 100 custom OIDs, I prefer the more human readable version, at least for some of it.

All worked before the upgrade to 8889 stable.

The RRD data is the following :

Performance & Output RRDTool Output: 1233x607 RRDtool Runtime: 0.103s | Total time: 0.104s RRDTool Command /usr/bin/rrdtool graph /tmp/mfu0vmGXvSF9OEla.png -Y --lower-limit 0 --alt-autoscale-max --start 1509385321 --end 1509471721 --width 1152 --height 300 -c BACK#EEEEEE00 -c SHADEA#EEEEEE00 -c SHADEB#EEEEEE00 -c FONT#000000 -c CANVAS#FFFFFF00 -c GRID#a5a5a5 -c MGRID#FF9999 -c FRAME#5e5e5e -c ARROW#5e5e5e -R normal --font LEGEND:8:'DroidSansMono,DejaVuSansMono' --font AXIS:7:'DroidSansMono,DejaVuSansMono' --font-render-mode normal -E COMMENT:'Bits per second Now Min Max Avg' COMMENT:'\l' DEF:value1=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value1min=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value1max=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value2=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value2min=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value2max=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value3=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value3min=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value3max=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value4=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value4min=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value4max=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value5=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value5min=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value5max=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value6=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value6min=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value6max=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value7=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value7min=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value7max=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value8=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value8min=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value8max=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value9=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value9min=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value9max=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value10=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value10min=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value10max=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value11=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value11min=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value11max=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value12=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value12min=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value12max=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value13=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value13min=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value13max=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value14=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value14min=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value14max=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value15=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value15min=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value15max=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value16=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value16min=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value16max=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value17=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value17min=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value17max=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX AREA:value1#365C81:'ssf-nas-is7.foo.bar ' GPRINT:value1:LAST:%5.1lf%s GPRINT:value1min:MIN:%5.1lf%s GPRINT:value1max:MAX:%5.1lf%s GPRINT:value1:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value2#D8929F:'nas-rwc-is3.foo.bar ':STACK GPRINT:value2:LAST:%5.1lf%s GPRINT:value2min:MIN:%5.1lf%s GPRINT:value2max:MAX:%5.1lf%s GPRINT:value2:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value3#A99DCB:'nas-rwc-is2.foo.bar ':STACK GPRINT:value3:LAST:%5.1lf%s GPRINT:value3min:MIN:%5.1lf%s GPRINT:value3max:MAX:%5.1lf%s GPRINT:value3:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value4#6CA4D5:'nas-rwc-is4.foo.bar ':STACK GPRINT:value4:LAST:%5.1lf%s GPRINT:value4min:MIN:%5.1lf%s GPRINT:value4max:MAX:%5.1lf%s GPRINT:value4:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value5#8BA15F:'ssf-arch-is1.foo.bar ':STACK GPRINT:value5:LAST:%5.1lf%s GPRINT:value5min:MIN:%5.1lf%s GPRINT:value5max:MAX:%5.1lf%s GPRINT:value5:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value6#E9CA5D:'rnunsis01.tot.foo.bar ':STACK GPRINT:value6:LAST:%5.1lf%s GPRINT:value6min:MIN:%5.1lf%s GPRINT:value6max:MAX:%5.1lf%s GPRINT:value6:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value7#DF9933:'nas-rwc-is5.foo.bar ':STACK GPRINT:value7:LAST:%5.1lf%s GPRINT:value7min:MIN:%5.1lf%s GPRINT:value7max:MAX:%5.1lf%s GPRINT:value7:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value8#D33627:'nas-rwc-is6.foo.bar ':STACK GPRINT:value8:LAST:%5.1lf%s GPRINT:value8min:MIN:%5.1lf%s GPRINT:value8max:MAX:%5.1lf%s GPRINT:value8:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value9#881C45:'ridnsis02x.ind.foo.bar ':STACK GPRINT:value9:LAST:%5.1lf%s GPRINT:value9min:MIN:%5.1lf%s GPRINT:value9max:MAX:%5.1lf%s GPRINT:value9:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value10#C74379:'nas-vv-is3.foo.bar ':STACK GPRINT:value10:LAST:%5.1lf%s GPRINT:value10min:MIN:%5.1lf%s GPRINT:value10max:MAX:%5.1lf%s GPRINT:value10:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value11#9B2F82:'nas-vv-is2.foo.bar ':STACK GPRINT:value11:LAST:%5.1lf%s GPRINT:value11min:MIN:%5.1lf%s GPRINT:value11max:MAX:%5.1lf%s GPRINT:value11:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value12#345AA8:'ssfnsispredrep01.sc1.foo.bar ':STACK GPRINT:value12:LAST:%5.1lf%s GPRINT:value12min:MIN:%5.1lf%s GPRINT:value12max:MAX:%5.1lf%s GPRINT:value12:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value13#88C3C9:'ssf-m01-is01.foo.bar ':STACK GPRINT:value13:LAST:%5.1lf%s GPRINT:value13min:MIN:%5.1lf%s GPRINT:value13max:MAX:%5.1lf%s GPRINT:value13:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value14#519466:'ssf-m02-is02.foo.bar ':STACK GPRINT:value14:LAST:%5.1lf%s GPRINT:value14min:MIN:%5.1lf%s GPRINT:value14max:MAX:%5.1lf%s GPRINT:value14:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value15#A7C662:'rlfnsis01.lif.foo.bar ':STACK GPRINT:value15:LAST:%5.1lf%s GPRINT:value15min:MIN:%5.1lf%s GPRINT:value15max:MAX:%5.1lf%s GPRINT:value15:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value16#BA723D:'ridnsis05x.ind.foo.bar ':STACK GPRINT:value16:LAST:%5.1lf%s GPRINT:value16min:MIN:%5.1lf%s GPRINT:value16max:MAX:%5.1lf%s GPRINT:value16:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value17#864A23:'nas-b41-is1.foo.bar ':STACK GPRINT:value17:LAST:%5.1lf%s GPRINT:value17min:MIN:%5.1lf%s GPRINT:value17max:MAX:%5.1lf%s GPRINT:value17:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' CDEF:aggregate=value1,UN,0,value1,IF,value2,UN,0,value2,IF,value3,UN,0,value3,IF,value4,UN,0,value4,IF,value5,UN,0,value5,IF,value6,UN,0,value6,IF,value7,UN,0,value7,IF,value8,UN,0,value8,IF,value9,UN,0,value9,IF,value10,UN,0,value10,IF,value11,UN,0,value11,IF,value12,UN,0,value12,IF,value13,UN,0,value13,IF,value14,UN,0,value14,IF,value15,UN,0,value15,IF,value16,UN,0,value16,IF,value17,UN,0,value17,IF,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+ LINE1.5:aggregate#000000:'Aggregate ' GPRINT:aggregate:LAST:%5.1lf%s GPRINT:aggregate:MIN:%5.1lf%s GPRINT:aggregate:MAX:%5.1lf%s GPRINT:aggregate:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' HRULE:0#555555 RRDTool Files Used /home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

On Fri, Oct 27, 2017 at 11:20 AM Adam Armstrong <adama@observium.org [mailto:adama@observium.org]> wrote:

It works fine for me, both graphtypes on both oid types.

btw, that isn't a numeric OID, the OID name is wrong (it's missing the index) and that description is much longer than intended :P

If you click on the graph and then get the graph browser to give you the rrd output, you might get some useful information.

adam. On 2017-10-26 05:40:36, Jesper Frank Nemholt <jfn@dassic.com [mailto:jfn@dassic.com]> wrote: Hi!

Upgraded and now it breaks the stacked and combined line graphs. The individual graphs themselves are OK.

It seems to be across the board on all combined graphs and not specific to the example attached (custom OIDs for EMC Isilon)

/Jesper _______________________________________________ observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium] _______________________________________________ observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium]

_______________________________________________ observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

Screenshot the entire page, including the rrd output and the image.

⁣Sent from BlueMail ​

On 31 Oct 2017, 19:10, at 19:10, Jesper Frank Nemholt jfn@dassic.com wrote:

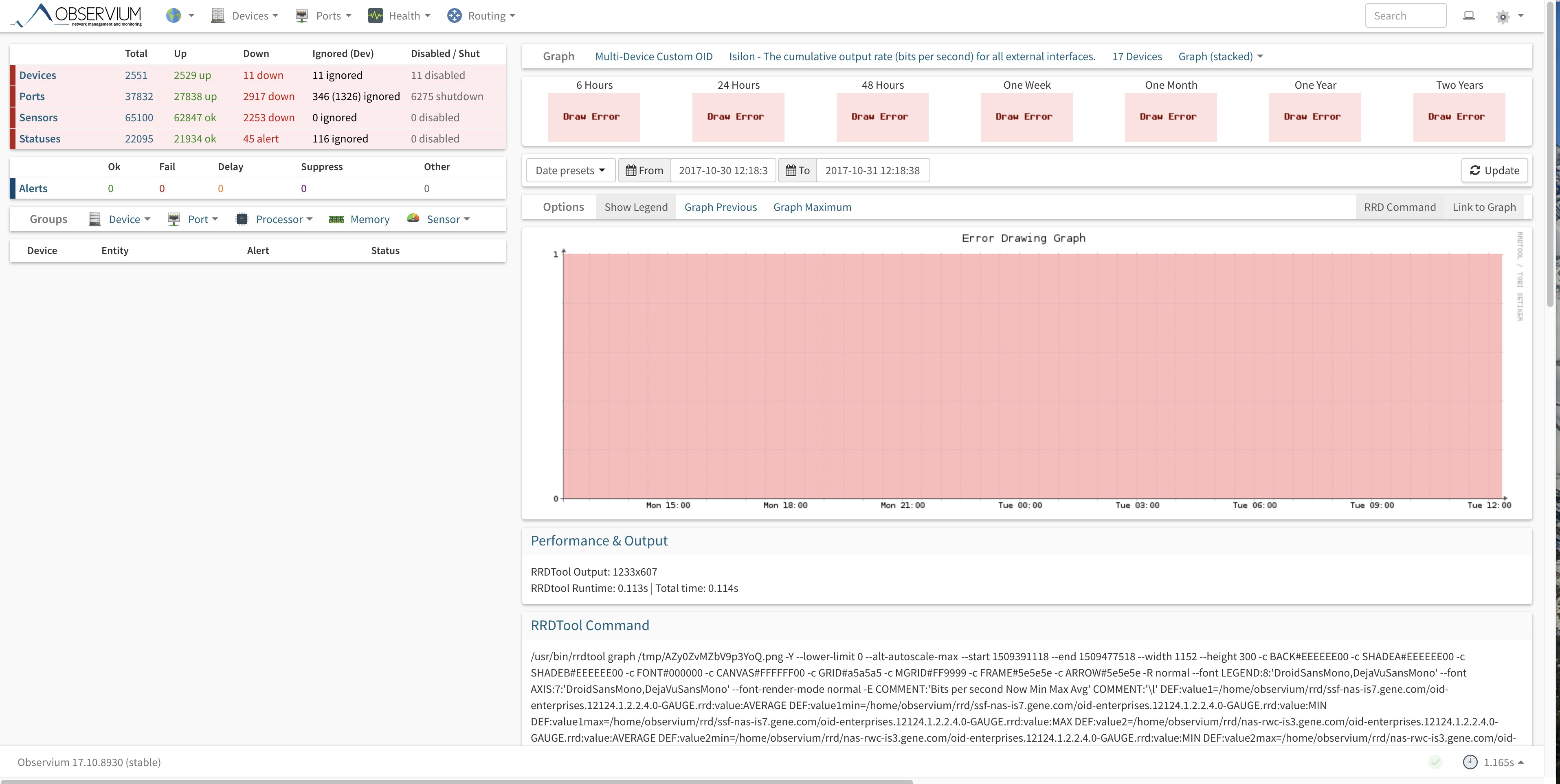

Hmm, strange. I get this...technically it's an image, but the data is missing :

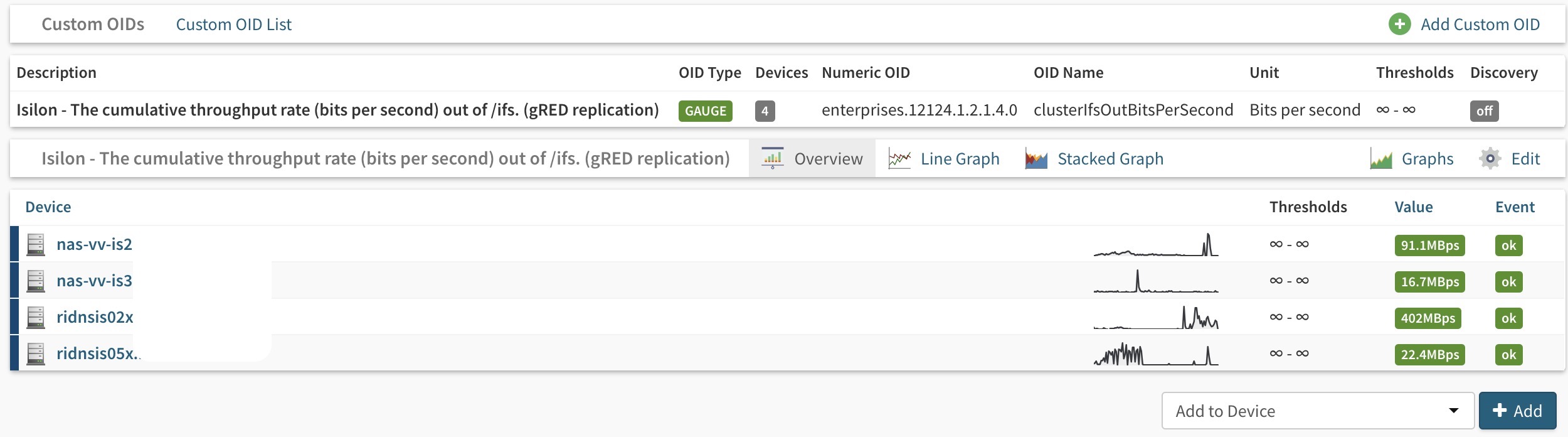

[image: image.png] If I look only in the overview, so each device individually, all works, but when stacking or combining, it breaks.

/Jesper

On Tue, Oct 31, 2017 at 6:00 PM Adam Armstrong adama@observium.org wrote:

...

RRDTool Output: 1233x607

This is actually generating an image. It also works ok for me.

adam.

On 2017-10-31 17:47:55, Jesper Frank Nemholt jfn@dassic.com wrote: Hi!

Correct it's not a numeric OID, but it always worked, with with > 100 custom OIDs, I prefer the more human readable version, at least for

some of

...

it.

All worked before the upgrade to 8889 stable.

The RRD data is the following :

Performance & Output

RRDTool Output: 1233x607

RRDtool Runtime: 0.103s | Total time: 0.104s

RRDTool Command

/usr/bin/rrdtool graph /tmp/mfu0vmGXvSF9OEla.png -Y --lower-limit 0 --alt-autoscale-max --start 1509385321 --end 1509471721 --width 1152 --height 300 -c BACK#EEEEEE00 -c SHADEA#EEEEEE00 -c SHADEB#EEEEEE00

-c

...

FONT#000000 -c CANVAS#FFFFFF00 -c GRID#a5a5a5 -c MGRID#FF9999 -c FRAME#5e5e5e -c ARROW#5e5e5e -R normal --font LEGEND:8:'DroidSansMono,DejaVuSansMono' --font AXIS:7:'DroidSansMono,DejaVuSansMono' --font-render-mode normal -E COMMENT:'Bits per second Now Min Max Avg' COMMENT:'\l'

DEF:value1=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value1min=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value1max=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value2=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value2min=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value2max=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value3=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value3min=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value3max=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value4=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value4min=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value4max=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value5=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value5min=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value5max=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value6=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value6min=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value6max=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value7=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value7min=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value7max=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value8=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value8min=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value8max=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value9=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value9min=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value9max=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value10=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value10min=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value10max=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value11=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value11min=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value11max=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value12=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value12min=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value12max=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value13=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value13min=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value13max=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value14=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value14min=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value14max=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value15=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value15min=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value15max=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value16=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value16min=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value16max=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

DEF:value17=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

DEF:value17min=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

DEF:value17max=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

AREA:value1#365C81:'ssf-nas-is7.foo.bar ' GPRINT:value1:LAST:%5.1lf%s GPRINT:value1min:MIN:%5.1lf%s GPRINT:value1max:MAX:%5.1lf%s GPRINT:value1:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value2#D8929F:'nas-rwc-is3.foo.bar ':STACK

GPRINT:value2:LAST:%5.1lf%s

...

GPRINT:value2min:MIN:%5.1lf%s GPRINT:value2max:MAX:%5.1lf%s GPRINT:value2:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value3#A99DCB:'nas-rwc-is2.foo.bar ':STACK

GPRINT:value3:LAST:%5.1lf%s

...

GPRINT:value3min:MIN:%5.1lf%s GPRINT:value3max:MAX:%5.1lf%s GPRINT:value3:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value4#6CA4D5:'nas-rwc-is4.foo.bar ':STACK

GPRINT:value4:LAST:%5.1lf%s

...

GPRINT:value4min:MIN:%5.1lf%s GPRINT:value4max:MAX:%5.1lf%s GPRINT:value4:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value5#8BA15F:'ssf-arch-is1.foo.bar ':STACK GPRINT:value5:LAST:%5.1lf%s GPRINT:value5min:MIN:%5.1lf%s GPRINT:value5max:MAX:%5.1lf%s GPRINT:value5:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value6#E9CA5D:'rnunsis01.tot.foo.bar ':STACK GPRINT:value6:LAST:%5.1lf%s GPRINT:value6min:MIN:%5.1lf%s GPRINT:value6max:MAX:%5.1lf%s GPRINT:value6:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value7#DF9933:'nas-rwc-is5.foo.bar ':STACK GPRINT:value7:LAST:%5.1lf%s GPRINT:value7min:MIN:%5.1lf%s GPRINT:value7max:MAX:%5.1lf%s GPRINT:value7:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value8#D33627:'nas-rwc-is6.foo.bar ':STACK GPRINT:value8:LAST:%5.1lf%s GPRINT:value8min:MIN:%5.1lf%s GPRINT:value8max:MAX:%5.1lf%s GPRINT:value8:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value9#881C45:'ridnsis02x.ind.foo.bar ':STACK GPRINT:value9:LAST:%5.1lf%s GPRINT:value9min:MIN:%5.1lf%s GPRINT:value9max:MAX:%5.1lf%s GPRINT:value9:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value10#C74379:'nas-vv-is3.foo.bar ':STACK GPRINT:value10:LAST:%5.1lf%s GPRINT:value10min:MIN:%5.1lf%s GPRINT:value10max:MAX:%5.1lf%s GPRINT:value10:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value11#9B2F82:'nas-vv-is2.foo.bar ':STACK GPRINT:value11:LAST:%5.1lf%s GPRINT:value11min:MIN:%5.1lf%s GPRINT:value11max:MAX:%5.1lf%s GPRINT:value11:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value12#345AA8:'ssfnsispredrep01.sc1.foo.bar

':STACK

...

GPRINT:value12:LAST:%5.1lf%s GPRINT:value12min:MIN:%5.1lf%s GPRINT:value12max:MAX:%5.1lf%s GPRINT:value12:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value13#88C3C9:'ssf-m01-is01.foo.bar ':STACK GPRINT:value13:LAST:%5.1lf%s GPRINT:value13min:MIN:%5.1lf%s GPRINT:value13max:MAX:%5.1lf%s GPRINT:value13:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value14#519466:'ssf-m02-is02.foo.bar ':STACK GPRINT:value14:LAST:%5.1lf%s GPRINT:value14min:MIN:%5.1lf%s GPRINT:value14max:MAX:%5.1lf%s GPRINT:value14:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value15#A7C662:'rlfnsis01.lif.foo.bar ':STACK GPRINT:value15:LAST:%5.1lf%s GPRINT:value15min:MIN:%5.1lf%s GPRINT:value15max:MAX:%5.1lf%s GPRINT:value15:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value16#BA723D:'ridnsis05x.ind.foo.bar ':STACK GPRINT:value16:LAST:%5.1lf%s GPRINT:value16min:MIN:%5.1lf%s GPRINT:value16max:MAX:%5.1lf%s GPRINT:value16:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value17#864A23:'nas-b41-is1.foo.bar ':STACK GPRINT:value17:LAST:%5.1lf%s GPRINT:value17min:MIN:%5.1lf%s GPRINT:value17max:MAX:%5.1lf%s GPRINT:value17:AVERAGE:%5.1lf%s'\n' COMMENT:'\n'

CDEF:aggregate=value1,UN,0,value1,IF,value2,UN,0,value2,IF,value3,UN,0,value3,IF,value4,UN,0,value4,IF,value5,UN,0,value5,IF,value6,UN,0,value6,IF,value7,UN,0,value7,IF,value8,UN,0,value8,IF,value9,UN,0,value9,IF,value10,UN,0,value10,IF,value11,UN,0,value11,IF,value12,UN,0,value12,IF,value13,UN,0,value13,IF,value14,UN,0,value14,IF,value15,UN,0,value15,IF,value16,UN,0,value16,IF,value17,UN,0,value17,IF,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+

...

LINE1.5:aggregate#000000:'Aggregate ' GPRINT:aggregate:LAST:%5.1lf%s GPRINT:aggregate:MIN:%5.1lf%s GPRINT:aggregate:MAX:%5.1lf%s GPRINT:aggregate:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' HRULE:0#555555

RRDTool Files Used

/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

On Fri, Oct 27, 2017 at 11:20 AM Adam Armstrong adama@observium.org wrote:

...

It works fine for me, both graphtypes on both oid types.

btw, that isn't a numeric OID, the OID name is wrong (it's missing

the

...

...

index) and that description is much longer than intended :P

If you click on the graph and then get the graph browser to give you

the

...

...

rrd output, you might get some useful information.

adam.

On 2017-10-26 05:40:36, Jesper Frank Nemholt jfn@dassic.com wrote: Hi!

Upgraded and now it breaks the stacked and combined line graphs. The individual graphs themselves are OK.

It seems to be across the board on all combined graphs and not

specific

...

...

to the example attached (custom OIDs for EMC Isilon)

/Jesper

_______________________________________________ observium mailing

list

...

...

observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

_______________________________________________ observium mailing

list

...

observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

Copy the rrdtool command and run it on the console. I'm not sure why it's not giving the correct error, bleh!

adam. On 2017-10-31 19:29:40, Jesper Frank Nemholt jfn@dassic.com wrote: Too big to capture all in one screenshot, so split in 3 + last picture when not stacked (where it works) : [image.png] [image.png]

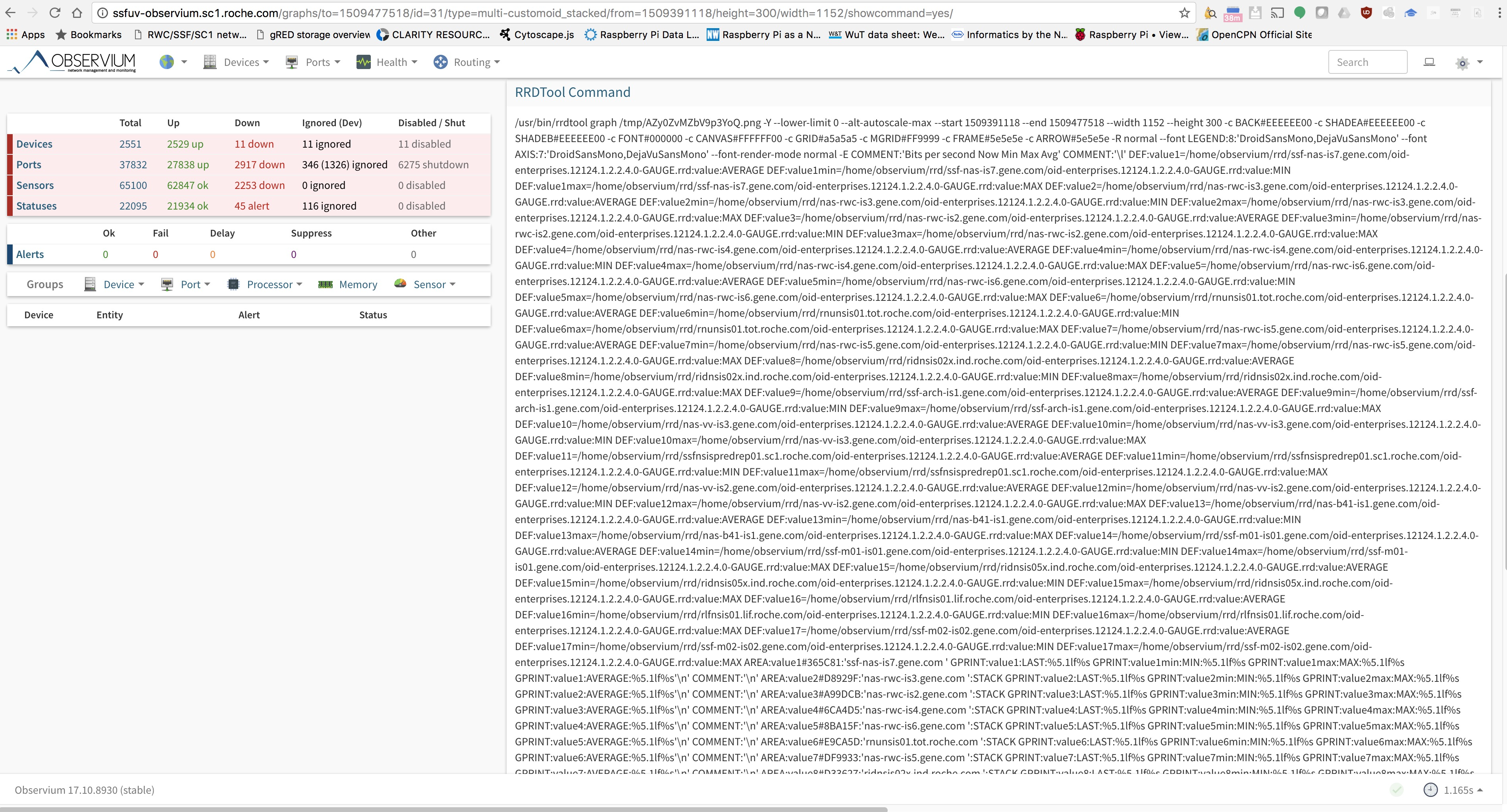

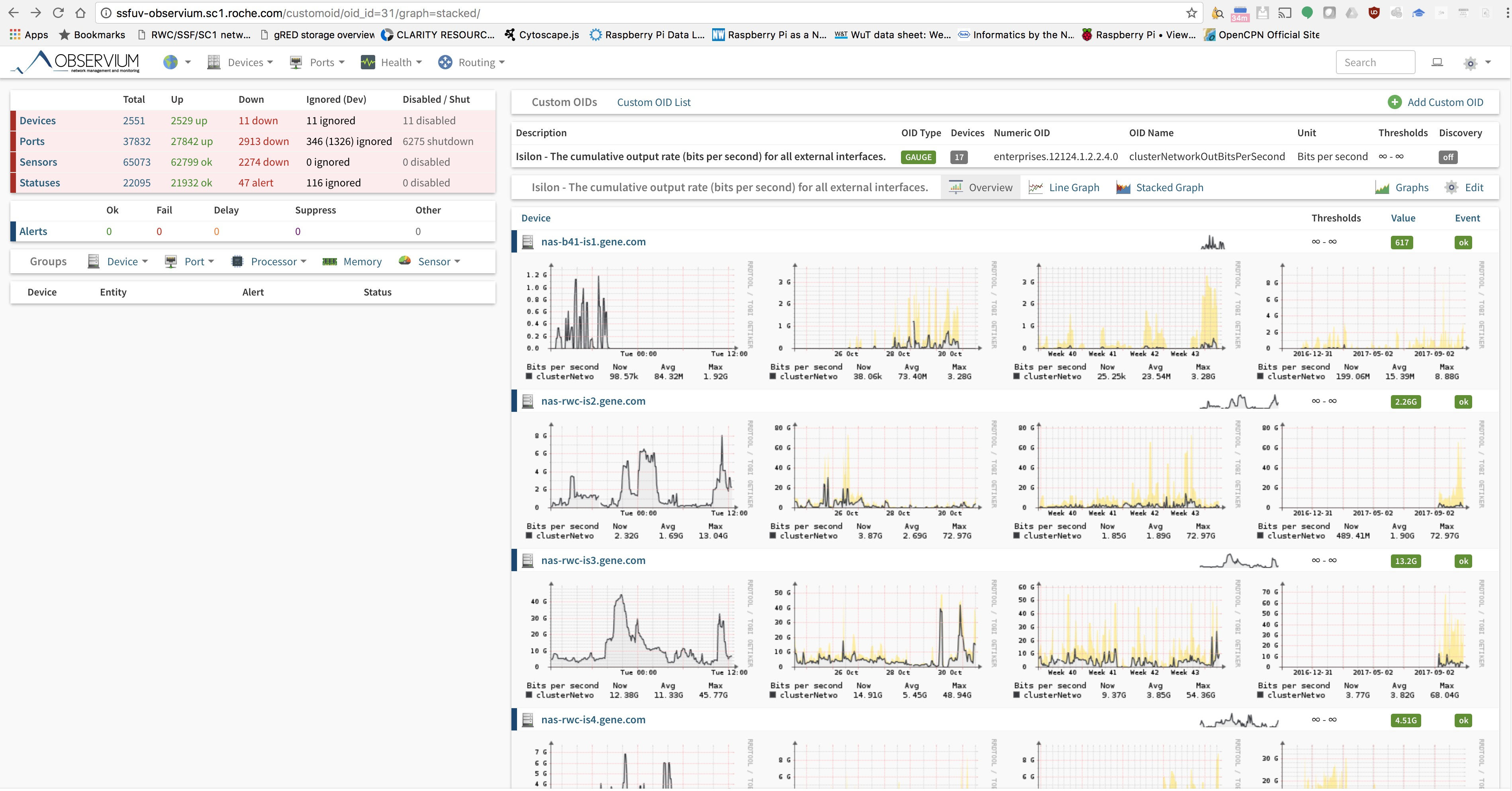

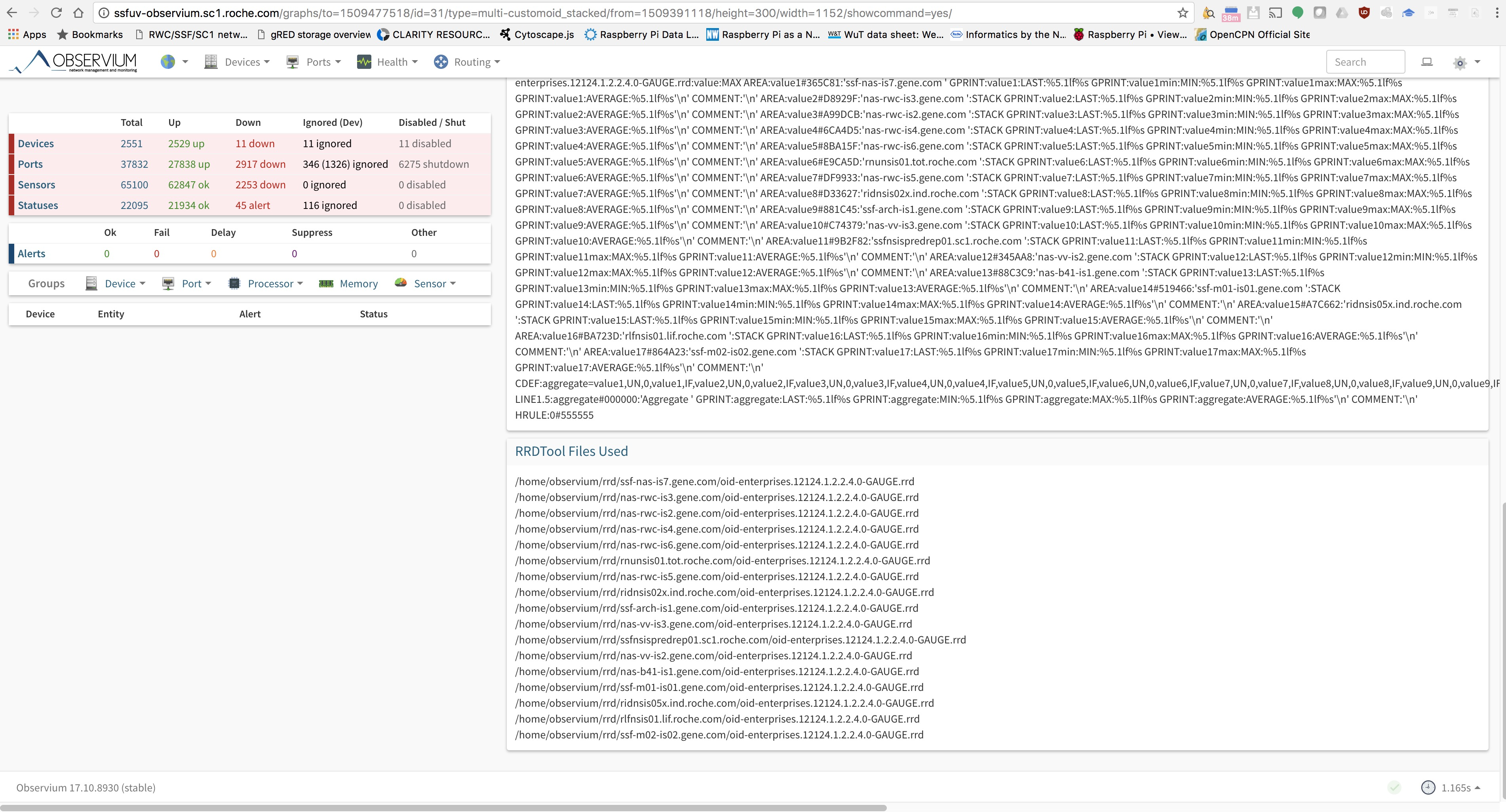

[image.png] [image.png]

On Tue, Oct 31, 2017 at 7:14 PM Adam Armstrong <adama@memetic.org [mailto:adama@memetic.org]> wrote:

Screenshot the entire page, including the rrd output and the image.

Sent from BlueMail [http://www.bluemail.me/r?b=11012] On 31 Oct 2017, at 19:10, Jesper Frank Nemholt <jfn@dassic.com [mailto:jfn@dassic.com]> wrote: Hmm, strange. I get this...technically it's an image, but the data is missing :

[image.png] If I look only in the overview, so each device individually, all works, but when stacking or combining, it breaks.

/Jesper

On Tue, Oct 31, 2017 at 6:00 PM Adam Armstrong <adama@observium.org [mailto:adama@observium.org]> wrote:

RRDTool Output: 1233x607

This is actually generating an image. It also works ok for me.

adam. On 2017-10-31 17:47:55, Jesper Frank Nemholt <jfn@dassic.com [mailto:jfn@dassic.com]> wrote: Hi!

Correct it's not a numeric OID, but it always worked, with with > 100 custom OIDs, I prefer the more human readable version, at least for some of it.

All worked before the upgrade to 8889 stable.

The RRD data is the following :

Performance & Output RRDTool Output: 1233x607 RRDtool Runtime: 0.103s | Total time: 0.104s RRDTool Command /usr/bin/rrdtool graph /tmp/mfu0vmGXvSF9OEla.png -Y --lower-limit 0 --alt-autoscale-max --start 1509385321 --end 1509471721 --width 1152 --height 300 -c BACK#EEEEEE00 -c SHADEA#EEEEEE00 -c SHADEB#EEEEEE00 -c FONT#000000 -c CANVAS#FFFFFF00 -c GRID#a5a5a5 -c MGRID#FF9999 -c FRAME#5e5e5e -c ARROW#5e5e5e -R normal --font LEGEND:8:'DroidSansMono,DejaVuSansMono' --font AXIS:7:'DroidSansMono,DejaVuSansMono' --font-render-mode normal -E COMMENT:'Bits per second Now Min Max Avg' COMMENT:'\l' DEF:value1=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value1min=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value1max=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value2=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value2min=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value2max=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value3=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value3min=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value3max=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value4=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value4min=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value4max=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value5=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value5min=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value5max=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value6=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value6min=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value6max=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value7=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value7min=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value7max=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value8=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value8min=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value8max=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value9=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value9min=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value9max=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value10=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value10min=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value10max=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value11=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value11min=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value11max=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value12=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value12min=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value12max=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value13=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value13min=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value13max=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value14=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value14min=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value14max=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value15=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value15min=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value15max=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value16=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value16min=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value16max=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value17=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value17min=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value17max=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX AREA:value1#365C81:'ssf-nas-is7.foo.bar ' GPRINT:value1:LAST:%5.1lf%s GPRINT:value1min:MIN:%5.1lf%s GPRINT:value1max:MAX:%5.1lf%s GPRINT:value1:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value2#D8929F:'nas-rwc-is3.foo.bar ':STACK GPRINT:value2:LAST:%5.1lf%s GPRINT:value2min:MIN:%5.1lf%s GPRINT:value2max:MAX:%5.1lf%s GPRINT:value2:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value3#A99DCB:'nas-rwc-is2.foo.bar ':STACK GPRINT:value3:LAST:%5.1lf%s GPRINT:value3min:MIN:%5.1lf%s GPRINT:value3max:MAX:%5.1lf%s GPRINT:value3:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value4#6CA4D5:'nas-rwc-is4.foo.bar ':STACK GPRINT:value4:LAST:%5.1lf%s GPRINT:value4min:MIN:%5.1lf%s GPRINT:value4max:MAX:%5.1lf%s GPRINT:value4:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value5#8BA15F:'ssf-arch-is1.foo.bar ':STACK GPRINT:value5:LAST:%5.1lf%s GPRINT:value5min:MIN:%5.1lf%s GPRINT:value5max:MAX:%5.1lf%s GPRINT:value5:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value6#E9CA5D:'rnunsis01.tot.foo.bar ':STACK GPRINT:value6:LAST:%5.1lf%s GPRINT:value6min:MIN:%5.1lf%s GPRINT:value6max:MAX:%5.1lf%s GPRINT:value6:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value7#DF9933:'nas-rwc-is5.foo.bar ':STACK GPRINT:value7:LAST:%5.1lf%s GPRINT:value7min:MIN:%5.1lf%s GPRINT:value7max:MAX:%5.1lf%s GPRINT:value7:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value8#D33627:'nas-rwc-is6.foo.bar ':STACK GPRINT:value8:LAST:%5.1lf%s GPRINT:value8min:MIN:%5.1lf%s GPRINT:value8max:MAX:%5.1lf%s GPRINT:value8:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value9#881C45:'ridnsis02x.ind.foo.bar ':STACK GPRINT:value9:LAST:%5.1lf%s GPRINT:value9min:MIN:%5.1lf%s GPRINT:value9max:MAX:%5.1lf%s GPRINT:value9:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value10#C74379:'nas-vv-is3.foo.bar ':STACK GPRINT:value10:LAST:%5.1lf%s GPRINT:value10min:MIN:%5.1lf%s GPRINT:value10max:MAX:%5.1lf%s GPRINT:value10:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value11#9B2F82:'nas-vv-is2.foo.bar ':STACK GPRINT:value11:LAST:%5.1lf%s GPRINT:value11min:MIN:%5.1lf%s GPRINT:value11max:MAX:%5.1lf%s GPRINT:value11:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value12#345AA8:'ssfnsispredrep01.sc1.foo.bar ':STACK GPRINT:value12:LAST:%5.1lf%s GPRINT:value12min:MIN:%5.1lf%s GPRINT:value12max:MAX:%5.1lf%s GPRINT:value12:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value13#88C3C9:'ssf-m01-is01.foo.bar ':STACK GPRINT:value13:LAST:%5.1lf%s GPRINT:value13min:MIN:%5.1lf%s GPRINT:value13max:MAX:%5.1lf%s GPRINT:value13:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value14#519466:'ssf-m02-is02.foo.bar ':STACK GPRINT:value14:LAST:%5.1lf%s GPRINT:value14min:MIN:%5.1lf%s GPRINT:value14max:MAX:%5.1lf%s GPRINT:value14:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value15#A7C662:'rlfnsis01.lif.foo.bar ':STACK GPRINT:value15:LAST:%5.1lf%s GPRINT:value15min:MIN:%5.1lf%s GPRINT:value15max:MAX:%5.1lf%s GPRINT:value15:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value16#BA723D:'ridnsis05x.ind.foo.bar ':STACK GPRINT:value16:LAST:%5.1lf%s GPRINT:value16min:MIN:%5.1lf%s GPRINT:value16max:MAX:%5.1lf%s GPRINT:value16:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value17#864A23:'nas-b41-is1.foo.bar ':STACK GPRINT:value17:LAST:%5.1lf%s GPRINT:value17min:MIN:%5.1lf%s GPRINT:value17max:MAX:%5.1lf%s GPRINT:value17:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' CDEF:aggregate=value1,UN,0,value1,IF,value2,UN,0,value2,IF,value3,UN,0,value3,IF,value4,UN,0,value4,IF,value5,UN,0,value5,IF,value6,UN,0,value6,IF,value7,UN,0,value7,IF,value8,UN,0,value8,IF,value9,UN,0,value9,IF,value10,UN,0,value10,IF,value11,UN,0,value11,IF,value12,UN,0,value12,IF,value13,UN,0,value13,IF,value14,UN,0,value14,IF,value15,UN,0,value15,IF,value16,UN,0,value16,IF,value17,UN,0,value17,IF,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+ LINE1.5:aggregate#000000:'Aggregate ' GPRINT:aggregate:LAST:%5.1lf%s GPRINT:aggregate:MIN:%5.1lf%s GPRINT:aggregate:MAX:%5.1lf%s GPRINT:aggregate:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' HRULE:0#555555 RRDTool Files Used /home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd /home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

On Fri, Oct 27, 2017 at 11:20 AM Adam Armstrong <adama@observium.org [mailto:adama@observium.org]> wrote:

It works fine for me, both graphtypes on both oid types.

btw, that isn't a numeric OID, the OID name is wrong (it's missing the index) and that description is much longer than intended :P

If you click on the graph and then get the graph browser to give you the rrd output, you might get some useful information.

adam. On 2017-10-26 05:40:36, Jesper Frank Nemholt <jfn@dassic.com [mailto:jfn@dassic.com]> wrote: Hi!

Upgraded and now it breaks the stacked and combined line graphs. The individual graphs themselves are OK.

It seems to be across the board on all combined graphs and not specific to the example attached (custom OIDs for EMC Isilon)

/Jesper _______________________________________________ observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium] _______________________________________________ observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium]

_______________________________________________ observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium] _______________________________________________ observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium]

observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium]

_______________________________________________ observium mailing list observium@observium.org [mailto:observium@observium.org] http://postman.memetic.org/cgi-bin/mailman/listinfo/observium [http://postman.memetic.org/cgi-bin/mailman/listinfo/observium]

_______________________________________________ observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

Hmm.

It seems that our code is deciding the generation failed and is sending the error image.

Adam.

⁣Sent from BlueMail ​

On 31 Oct 2017, 19:52, at 19:52, Jesper Frank Nemholt jfn@dassic.com wrote:

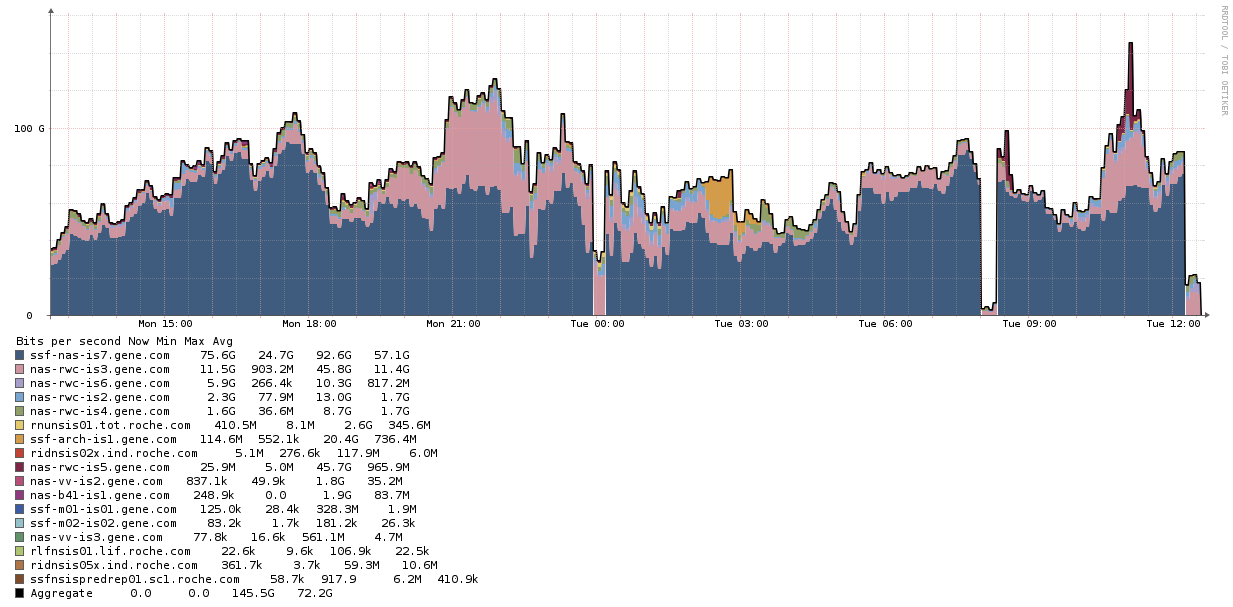

OK, so the command run with no errors and deliver a png image that actually looks correct...so I guess that the issue may be elsewhere....but I can't find any errors in access_log.

[image: image.png]

On Tue, Oct 31, 2017 at 7:33 PM Adam Armstrong adama@observium.org wrote:

...

Copy the rrdtool command and run it on the console. I'm not sure why

it's

...

not giving the correct error, bleh!

adam.

On 2017-10-31 19:29:40, Jesper Frank Nemholt jfn@dassic.com wrote: Too big to capture all in one screenshot, so split in 3 + last


...

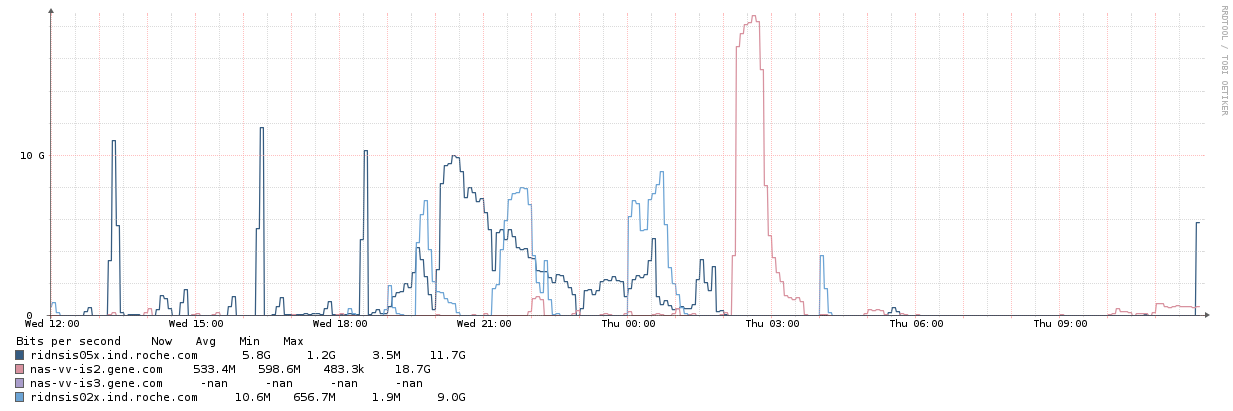

when not stacked (where it works) :[image: image.png] [image: image.png] [image: image.png] [image: image.png]

On Tue, Oct 31, 2017 at 7:14 PM Adam Armstrong adama@memetic.org

wrote:

...

...

Screenshot the entire page, including the rrd output and the image.

Sent from BlueMail http://www.bluemail.me/r?b=11012 On 31 Oct 2017, at 19:10, Jesper Frank Nemholt jfn@dassic.com

wrote:

...

...

...

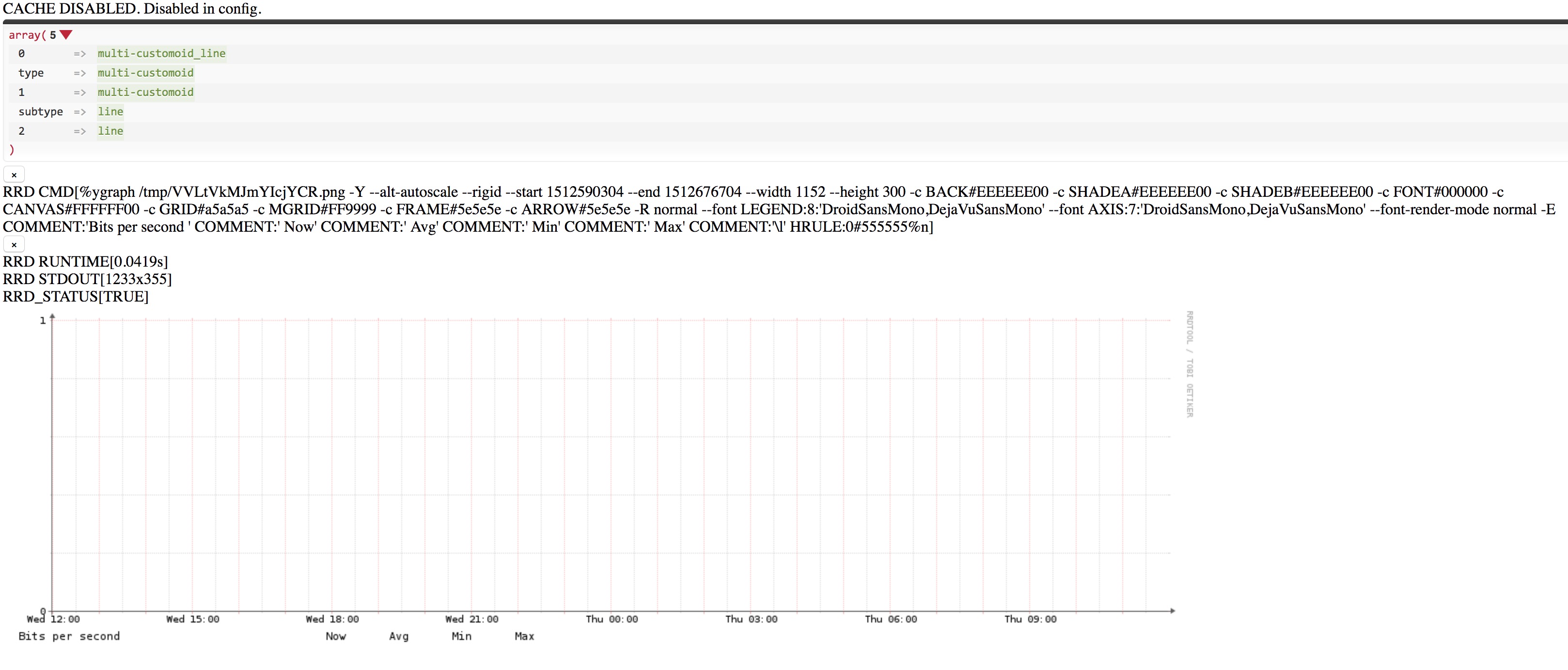

Hmm, strange. I get this...technically it's an image, but the data

is

...

...

...

missing :

[image: image.png] If I look only in the overview, so each device individually, all

works,

...

...

...

but when stacking or combining, it breaks.

/Jesper

On Tue, Oct 31, 2017 at 6:00 PM Adam Armstrong

adama@observium.org

...

...

...

wrote:

...

RRDTool Output: 1233x607

This is actually generating an image. It also works ok for me.

adam.

On 2017-10-31 17:47:55, Jesper Frank Nemholt jfn@dassic.com

wrote:

...

...

...

...

Hi!

Correct it's not a numeric OID, but it always worked, with with >

100

...

...

...

...

custom OIDs, I prefer the more human readable version, at least

for some of

...

...

...

...

it.

All worked before the upgrade to 8889 stable.

The RRD data is the following :

Performance & Output

RRDTool Output: 1233x607

RRDtool Runtime: 0.103s | Total time: 0.104s

RRDTool Command

/usr/bin/rrdtool graph /tmp/mfu0vmGXvSF9OEla.png -Y --lower-limit

0

...

...

...

...

--alt-autoscale-max --start 1509385321 --end 1509471721 --width

1152

...

...

...

...

--height 300 -c BACK#EEEEEE00 -c SHADEA#EEEEEE00 -c

SHADEB#EEEEEE00 -c

...

...

...

...

FONT#000000 -c CANVAS#FFFFFF00 -c GRID#a5a5a5 -c MGRID#FF9999 -c FRAME#5e5e5e -c ARROW#5e5e5e -R normal --font LEGEND:8:'DroidSansMono,DejaVuSansMono' --font AXIS:7:'DroidSansMono,DejaVuSansMono' --font-render-mode normal -E COMMENT:'Bits per second Now Min Max Avg' COMMENT:'\l'

DEF:value1=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value1min=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value1max=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value2=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value2min=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value2max=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value3=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value3min=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value3max=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value4=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value4min=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value4max=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value5=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value5min=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value5max=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value6=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value6min=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value6max=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value7=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value7min=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value7max=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value8=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value8min=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value8max=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value9=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value9min=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value9max=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value10=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value10min=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value10max=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value11=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value11min=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value11max=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value12=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value12min=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value12max=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value13=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value13min=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value13max=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value14=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value14min=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value14max=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value15=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value15min=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value15max=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value16=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value16min=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value16max=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

DEF:value17=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE

...

...

...

...

DEF:value17min=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN

...

...

...

...

DEF:value17max=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX

...

...

...

...

AREA:value1#365C81:'ssf-nas-is7.foo.bar '

GPRINT:value1:LAST:%5.1lf%s

...

...

...

...

GPRINT:value1min:MIN:%5.1lf%s GPRINT:value1max:MAX:%5.1lf%s GPRINT:value1:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value2#D8929F:'nas-rwc-is3.foo.bar ':STACK

GPRINT:value2:LAST:%5.1lf%s

...

...

...

...

GPRINT:value2min:MIN:%5.1lf%s GPRINT:value2max:MAX:%5.1lf%s GPRINT:value2:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value3#A99DCB:'nas-rwc-is2.foo.bar ':STACK

GPRINT:value3:LAST:%5.1lf%s

...

...

...

...

GPRINT:value3min:MIN:%5.1lf%s GPRINT:value3max:MAX:%5.1lf%s GPRINT:value3:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value4#6CA4D5:'nas-rwc-is4.foo.bar ':STACK

GPRINT:value4:LAST:%5.1lf%s

...

...

...

...

GPRINT:value4min:MIN:%5.1lf%s GPRINT:value4max:MAX:%5.1lf%s GPRINT:value4:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value5#8BA15F:'ssf-arch-is1.foo.bar ':STACK GPRINT:value5:LAST:%5.1lf%s GPRINT:value5min:MIN:%5.1lf%s GPRINT:value5max:MAX:%5.1lf%s GPRINT:value5:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value6#E9CA5D:'rnunsis01.tot.foo.bar ':STACK GPRINT:value6:LAST:%5.1lf%s GPRINT:value6min:MIN:%5.1lf%s GPRINT:value6max:MAX:%5.1lf%s GPRINT:value6:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value7#DF9933:'nas-rwc-is5.foo.bar ':STACK GPRINT:value7:LAST:%5.1lf%s GPRINT:value7min:MIN:%5.1lf%s GPRINT:value7max:MAX:%5.1lf%s GPRINT:value7:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value8#D33627:'nas-rwc-is6.foo.bar ':STACK GPRINT:value8:LAST:%5.1lf%s GPRINT:value8min:MIN:%5.1lf%s GPRINT:value8max:MAX:%5.1lf%s GPRINT:value8:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value9#881C45:'ridnsis02x.ind.foo.bar ':STACK GPRINT:value9:LAST:%5.1lf%s GPRINT:value9min:MIN:%5.1lf%s GPRINT:value9max:MAX:%5.1lf%s GPRINT:value9:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value10#C74379:'nas-vv-is3.foo.bar ':STACK GPRINT:value10:LAST:%5.1lf%s GPRINT:value10min:MIN:%5.1lf%s GPRINT:value10max:MAX:%5.1lf%s GPRINT:value10:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value11#9B2F82:'nas-vv-is2.foo.bar ':STACK GPRINT:value11:LAST:%5.1lf%s GPRINT:value11min:MIN:%5.1lf%s GPRINT:value11max:MAX:%5.1lf%s GPRINT:value11:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value12#345AA8:'ssfnsispredrep01.sc1.foo.bar

':STACK

...

...

...

...

GPRINT:value12:LAST:%5.1lf%s GPRINT:value12min:MIN:%5.1lf%s GPRINT:value12max:MAX:%5.1lf%s GPRINT:value12:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value13#88C3C9:'ssf-m01-is01.foo.bar ':STACK GPRINT:value13:LAST:%5.1lf%s GPRINT:value13min:MIN:%5.1lf%s GPRINT:value13max:MAX:%5.1lf%s GPRINT:value13:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value14#519466:'ssf-m02-is02.foo.bar ':STACK GPRINT:value14:LAST:%5.1lf%s GPRINT:value14min:MIN:%5.1lf%s GPRINT:value14max:MAX:%5.1lf%s GPRINT:value14:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value15#A7C662:'rlfnsis01.lif.foo.bar ':STACK GPRINT:value15:LAST:%5.1lf%s GPRINT:value15min:MIN:%5.1lf%s GPRINT:value15max:MAX:%5.1lf%s GPRINT:value15:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value16#BA723D:'ridnsis05x.ind.foo.bar ':STACK GPRINT:value16:LAST:%5.1lf%s GPRINT:value16min:MIN:%5.1lf%s GPRINT:value16max:MAX:%5.1lf%s GPRINT:value16:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value17#864A23:'nas-b41-is1.foo.bar ':STACK GPRINT:value17:LAST:%5.1lf%s GPRINT:value17min:MIN:%5.1lf%s GPRINT:value17max:MAX:%5.1lf%s GPRINT:value17:AVERAGE:%5.1lf%s'\n' COMMENT:'\n'

CDEF:aggregate=value1,UN,0,value1,IF,value2,UN,0,value2,IF,value3,UN,0,value3,IF,value4,UN,0,value4,IF,value5,UN,0,value5,IF,value6,UN,0,value6,IF,value7,UN,0,value7,IF,value8,UN,0,value8,IF,value9,UN,0,value9,IF,value10,UN,0,value10,IF,value11,UN,0,value11,IF,value12,UN,0,value12,IF,value13,UN,0,value13,IF,value14,UN,0,value14,IF,value15,UN,0,value15,IF,value16,UN,0,value16,IF,value17,UN,0,value17,IF,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+

...

...

...

...

LINE1.5:aggregate#000000:'Aggregate '

GPRINT:aggregate:LAST:%5.1lf%s

...

...

...

...

GPRINT:aggregate:MIN:%5.1lf%s GPRINT:aggregate:MAX:%5.1lf%s GPRINT:aggregate:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' HRULE:0#555555

RRDTool Files Used

/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

...

...

...

...

On Fri, Oct 27, 2017 at 11:20 AM Adam Armstrong

adama@observium.org

...

...

...

...

wrote:

...

It works fine for me, both graphtypes on both oid types.

btw, that isn't a numeric OID, the OID name is wrong (it's

missing the

...

...

...

...

...

index) and that description is much longer than intended :P

If you click on the graph and then get the graph browser to give

you

...

...

...

...

...

the rrd output, you might get some useful information.

adam.

On 2017-10-26 05:40:36, Jesper Frank Nemholt jfn@dassic.com

wrote:

...

...

...

...

...

Hi!

Upgraded and now it breaks the stacked and combined line graphs.

The

...

...

...

...

...

individual graphs themselves are OK.

It seems to be across the board on all combined graphs and not specific to the example attached (custom OIDs for EMC Isilon)

/Jesper

_______________________________________________ observium mailing

list

...

...

...

...

...

observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

_______________________________________________ observium mailing

list

...

...

...

...

observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

_______________________________________________ observium mailing

list

...

observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

Hi!

Coming back to this issue, I tried both latest stable and current, and both have the same issue. So whatever it is, it used to work prior to 8889 and hasn't worked since. It only happens with custom OID graphs. If I do stacking on standard port graphs, all works.

Symptom is an empty graph when I do line graph, and an error (and red graph) when I do stacking I added the &debug=1 option to the graph script and got this (first line and then stacking) :

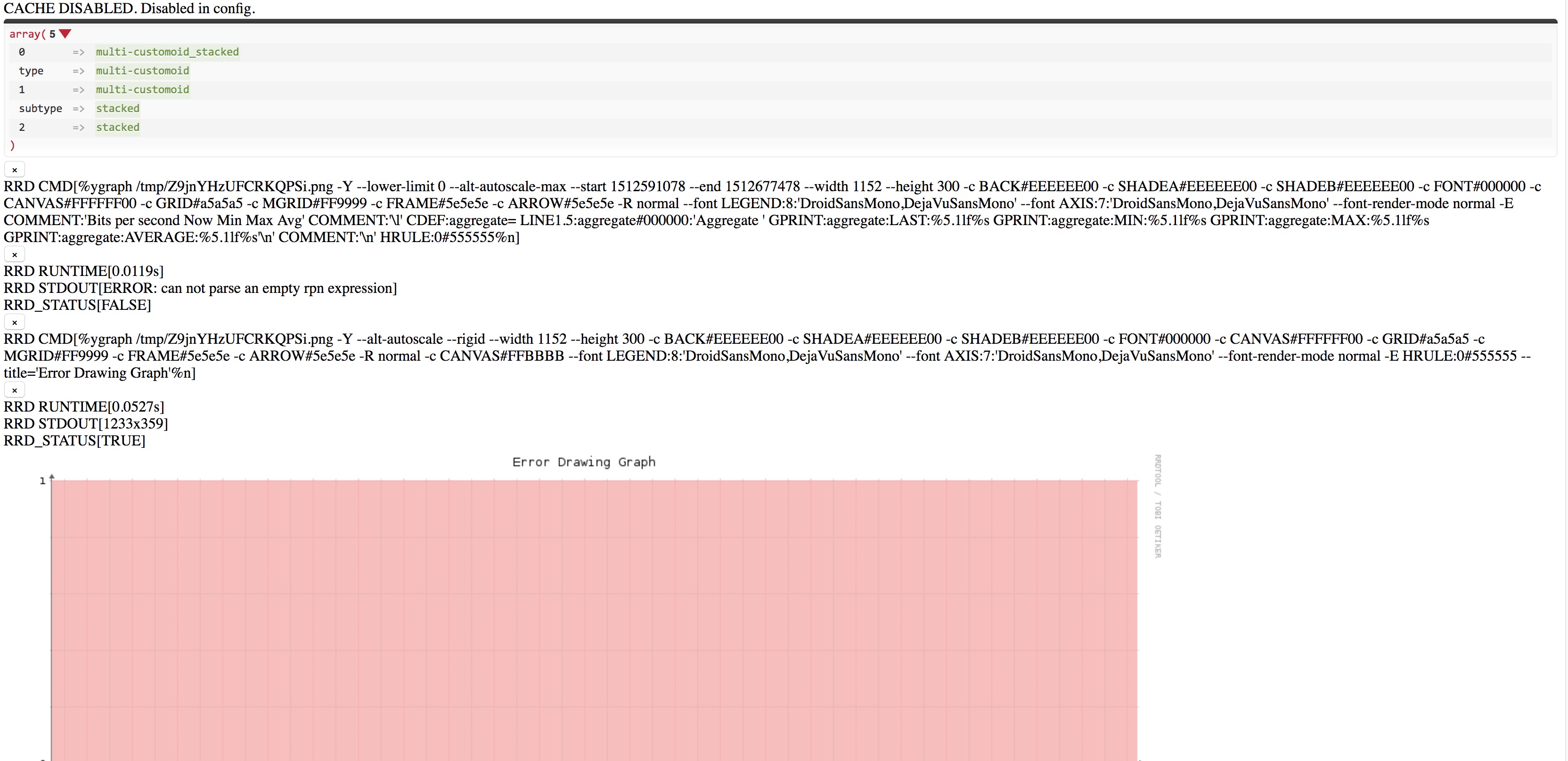

[image: Screen Shot 2017-12-07 at 12.05.36 PM.jpg] [image: Screen Shot 2017-12-07 at 12.11.55 PM.jpg]

The funny thing is that when I run the RRD command directly on the command line, it generates the PNG correctly :

/usr/bin/rrdtool graph /tmp/vH7NzZslZcT93o2W.png -Y --alt-autoscale --rigid --start 1512590304 --end 1512676704 --width 1152 --height 300 -c BACK#EEEEEE00 -c SHADEA#EEEEEE00 -c SHADEB#EEEEEE00 -c FONT#000000 -c CANVAS#FFFFFF00 -c GRID#a5a5a5 -c MGRID#FF9999 -c FRAME#5e5e5e -c ARROW#5e5e5e -R normal --font LEGEND:8:'DroidSansMono,DejaVuSansMono' --font AXIS:7:'DroidSansMono,DejaVuSansMono' --font-render-mode normal -E COMMENT:'Bits per second ' COMMENT:' Now' COMMENT:' Avg' COMMENT:' Min' COMMENT:' Max' COMMENT:'\l' DEF:ds1=/opt/observium/rrd/ ridnsis05x.ind.roche.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:AVERAGE DEF:ds1min=/opt/observium/rrd/ ridnsis05x.ind.roche.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MIN DEF:ds1max=/opt/observium/rrd/ ridnsis05x.ind.roche.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MAX DEF:ds2=/opt/observium/rrd/ nas-vv-is2.gene.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:AVERAGE DEF:ds2min=/opt/observium/rrd/ nas-vv-is2.gene.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MIN DEF:ds2max=/opt/observium/rrd/ nas-vv-is2.gene.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MAX DEF:ds3=/opt/observium/rrd/ ridnsis02x.ind.roche.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:AVERAGE DEF:ds3min=/opt/observium/rrd/ ridnsis02x.ind.roche.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MIN DEF:ds3max=/opt/observium/rrd/ ridnsis02x.ind.roche.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MAX DEF:ds4=/opt/observium/rrd/ nas-vv-is3.gene.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:AVERAGE DEF:ds4min=/opt/observium/rrd/ nas-vv-is3.gene.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MIN DEF:ds4max=/opt/observium/rrd/ nas-vv-is3.gene.com/oid-enterprises.12124.1.2.1.2.0-GAUGE.rrd:value:MAX LINE1.25:ds1#365C81:'ridnsis05x.ind.roche.com ' GPRINT:ds1:LAST:%6.1lf%s GPRINT:ds1:AVERAGE:%6.1lf%s GPRINT:ds1min:MIN:%6.1lf%s GPRINT:ds1max:MAX:%6.1lf%s COMMENT:'\l' LINE1.25:ds2#D8929F:' nas-vv-is2.gene.com ' GPRINT:ds2:LAST:%6.1lf%s GPRINT:ds2:AVERAGE:%6.1lf%s GPRINT:ds2min:MIN:%6.1lf%s GPRINT:ds2max:MAX:%6.1lf%s COMMENT:'\l' LINE1.25:ds3#A99DCB:'ridnsis02x.ind.roche.com ' GPRINT:ds3:LAST:%6.1lf%s GPRINT:ds3:AVERAGE:%6.1lf%s GPRINT:ds3min:MIN:%6.1lf%s GPRINT:ds3max:MAX:%6.1lf%s COMMENT:'\l' LINE1.25:ds4#6CA4D5:' nas-vv-is3.gene.com ' GPRINT:ds4:LAST:%6.1lf%s GPRINT:ds4:AVERAGE:%6.1lf%s GPRINT:ds4min:MIN:%6.1lf%s GPRINT:ds4max:MAX:%6.1lf%s COMMENT:'\l' HRULE:0#555555

The image generated : [image: xEwezExDDGX5WbtH.png] /Jesper

On Tue, Oct 31, 2017 at 1:08 PM Adam Armstrong adama@observium.org wrote:

"Error Drawing Graph" is generated here, but I can't see why the is_file() would fail if the image is being generated.

You can try going to the graph.php URL link directly and putting &debug=1 on the end, to see if it is actually creating a file.

if ($rrd_options) { rrdtool_graph($graphfile, $rrd_options); //print_debug($rrd_cmd); if (is_file($graphfile)) { if ($vars['image_data_uri'] == TRUE) { $image_data_uri = data_uri($graphfile, $mimetype); } else if (!OBS_DEBUG) { $fd = fopen($graphfile, 'rb'); header('Content-type: '.$mimetype); header('Content-Disposition: inline; filename="'.basename($graphfile).'"'); header('Content-Length: ' . filesize($graphfile)); fpassthru($fd); fclose($fd); } else { external_exec('/bin/ls -l '.$graphfile); echo('<img src="'.data_uri($graphfile, $mimetype).'" alt="graph" />'); } unlink($graphfile); } else { if ($width < 200) { graph_error("Draw Error"); } else { graph_error("Error Drawing Graph"); } } }

On 2017-10-31 19:59:02, Adam Armstrong adama@memetic.org wrote: Hmm.

It seems that our code is deciding the generation failed and is sending the error image.

Adam.

Sent from BlueMail http://www.bluemail.me/r?b=11012 On 31 Oct 2017, at 19:52, Jesper Frank Nemholt jfn@dassic.com wrote:

...

OK, so the command run with no errors and deliver a png image that actually looks correct...so I guess that the issue may be elsewhere....but I can't find any errors in access_log.

[image: image.png]

On Tue, Oct 31, 2017 at 7:33 PM Adam Armstrong adama@observium.org wrote:

...

Copy the rrdtool command and run it on the console. I'm not sure why it's not giving the correct error, bleh!

adam.

On 2017-10-31 19:29:40, Jesper Frank Nemholt jfn@dassic.com wrote: Too big to capture all in one screenshot, so split in 3 + last picture when not stacked (where it works) :[image: image.png] [image: image.png] [image: image.png] [image: image.png]

On Tue, Oct 31, 2017 at 7:14 PM Adam Armstrong adama@memetic.org wrote:

...

Screenshot the entire page, including the rrd output and the image.

Sent from BlueMail http://www.bluemail.me/r?b=11012 On 31 Oct 2017, at 19:10, Jesper Frank Nemholt jfn@dassic.com wrote:

...

Hmm, strange. I get this...technically it's an image, but the data is missing :

[image: image.png] If I look only in the overview, so each device individually, all works, but when stacking or combining, it breaks.

/Jesper

On Tue, Oct 31, 2017 at 6:00 PM Adam Armstrong adama@observium.org wrote:

...

RRDTool Output: 1233x607

This is actually generating an image. It also works ok for me.

adam.

On 2017-10-31 17:47:55, Jesper Frank Nemholt jfn@dassic.com wrote: Hi!

Correct it's not a numeric OID, but it always worked, with with > 100 custom OIDs, I prefer the more human readable version, at least for some of it.

All worked before the upgrade to 8889 stable.

The RRD data is the following :

Performance & Output

RRDTool Output: 1233x607

RRDtool Runtime: 0.103s | Total time: 0.104s

RRDTool Command

/usr/bin/rrdtool graph /tmp/mfu0vmGXvSF9OEla.png -Y --lower-limit 0 --alt-autoscale-max --start 1509385321 --end 1509471721 --width 1152 --height 300 -c BACK#EEEEEE00 -c SHADEA#EEEEEE00 -c SHADEB#EEEEEE00 -c FONT#000000 -c CANVAS#FFFFFF00 -c GRID#a5a5a5 -c MGRID#FF9999 -c FRAME#5e5e5e -c ARROW#5e5e5e -R normal --font LEGEND:8:'DroidSansMono,DejaVuSansMono' --font AXIS:7:'DroidSansMono,DejaVuSansMono' --font-render-mode normal -E COMMENT:'Bits per second Now Min Max Avg' COMMENT:'\l' DEF:value1=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value1min=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value1max=/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value2=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value2min=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value2max=/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value3=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value3min=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value3max=/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value4=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value4min=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value4max=/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value5=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value5min=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value5max=/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value6=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value6min=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value6max=/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value7=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value7min=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value7max=/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value8=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value8min=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value8max=/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value9=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value9min=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value9max=/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value10=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value10min=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value10max=/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value11=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value11min=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value11max=/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value12=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value12min=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value12max=/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value13=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value13min=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value13max=/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value14=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value14min=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value14max=/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value15=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value15min=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value15max=/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value16=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value16min=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value16max=/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX DEF:value17=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:AVERAGE DEF:value17min=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MIN DEF:value17max=/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd:value:MAX AREA:value1#365C81:'ssf-nas-is7.foo.bar ' GPRINT:value1:LAST:%5.1lf%s GPRINT:value1min:MIN:%5.1lf%s GPRINT:value1max:MAX:%5.1lf%s GPRINT:value1:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value2#D8929F:'nas-rwc-is3.foo.bar ':STACK GPRINT:value2:LAST:%5.1lf%s GPRINT:value2min:MIN:%5.1lf%s GPRINT:value2max:MAX:%5.1lf%s GPRINT:value2:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value3#A99DCB:'nas-rwc-is2.foo.bar ':STACK GPRINT:value3:LAST:%5.1lf%s GPRINT:value3min:MIN:%5.1lf%s GPRINT:value3max:MAX:%5.1lf%s GPRINT:value3:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value4#6CA4D5:'nas-rwc-is4.foo.bar ':STACK GPRINT:value4:LAST:%5.1lf%s GPRINT:value4min:MIN:%5.1lf%s GPRINT:value4max:MAX:%5.1lf%s GPRINT:value4:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value5#8BA15F:'ssf-arch-is1.foo.bar ':STACK GPRINT:value5:LAST:%5.1lf%s GPRINT:value5min:MIN:%5.1lf%s GPRINT:value5max:MAX:%5.1lf%s GPRINT:value5:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value6#E9CA5D:'rnunsis01.tot.foo.bar ':STACK GPRINT:value6:LAST:%5.1lf%s GPRINT:value6min:MIN:%5.1lf%s GPRINT:value6max:MAX:%5.1lf%s GPRINT:value6:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value7#DF9933:'nas-rwc-is5.foo.bar ':STACK GPRINT:value7:LAST:%5.1lf%s GPRINT:value7min:MIN:%5.1lf%s GPRINT:value7max:MAX:%5.1lf%s GPRINT:value7:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value8#D33627:'nas-rwc-is6.foo.bar ':STACK GPRINT:value8:LAST:%5.1lf%s GPRINT:value8min:MIN:%5.1lf%s GPRINT:value8max:MAX:%5.1lf%s GPRINT:value8:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value9#881C45:'ridnsis02x.ind.foo.bar ':STACK GPRINT:value9:LAST:%5.1lf%s GPRINT:value9min:MIN:%5.1lf%s GPRINT:value9max:MAX:%5.1lf%s GPRINT:value9:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value10#C74379:'nas-vv-is3.foo.bar ':STACK GPRINT:value10:LAST:%5.1lf%s GPRINT:value10min:MIN:%5.1lf%s GPRINT:value10max:MAX:%5.1lf%s GPRINT:value10:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value11#9B2F82:'nas-vv-is2.foo.bar ':STACK GPRINT:value11:LAST:%5.1lf%s GPRINT:value11min:MIN:%5.1lf%s GPRINT:value11max:MAX:%5.1lf%s GPRINT:value11:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value12#345AA8:'ssfnsispredrep01.sc1.foo.bar ':STACK GPRINT:value12:LAST:%5.1lf%s GPRINT:value12min:MIN:%5.1lf%s GPRINT:value12max:MAX:%5.1lf%s GPRINT:value12:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value13#88C3C9:'ssf-m01-is01.foo.bar ':STACK GPRINT:value13:LAST:%5.1lf%s GPRINT:value13min:MIN:%5.1lf%s GPRINT:value13max:MAX:%5.1lf%s GPRINT:value13:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value14#519466:'ssf-m02-is02.foo.bar ':STACK GPRINT:value14:LAST:%5.1lf%s GPRINT:value14min:MIN:%5.1lf%s GPRINT:value14max:MAX:%5.1lf%s GPRINT:value14:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value15#A7C662:'rlfnsis01.lif.foo.bar ':STACK GPRINT:value15:LAST:%5.1lf%s GPRINT:value15min:MIN:%5.1lf%s GPRINT:value15max:MAX:%5.1lf%s GPRINT:value15:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value16#BA723D:'ridnsis05x.ind.foo.bar ':STACK GPRINT:value16:LAST:%5.1lf%s GPRINT:value16min:MIN:%5.1lf%s GPRINT:value16max:MAX:%5.1lf%s GPRINT:value16:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' AREA:value17#864A23:'nas-b41-is1.foo.bar ':STACK GPRINT:value17:LAST:%5.1lf%s GPRINT:value17min:MIN:%5.1lf%s GPRINT:value17max:MAX:%5.1lf%s GPRINT:value17:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' CDEF:aggregate=value1,UN,0,value1,IF,value2,UN,0,value2,IF,value3,UN,0,value3,IF,value4,UN,0,value4,IF,value5,UN,0,value5,IF,value6,UN,0,value6,IF,value7,UN,0,value7,IF,value8,UN,0,value8,IF,value9,UN,0,value9,IF,value10,UN,0,value10,IF,value11,UN,0,value11,IF,value12,UN,0,value12,IF,value13,UN,0,value13,IF,value14,UN,0,value14,IF,value15,UN,0,value15,IF,value16,UN,0,value16,IF,value17,UN,0,value17,IF,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+,+ LINE1.5:aggregate#000000:'Aggregate ' GPRINT:aggregate:LAST:%5.1lf%s GPRINT:aggregate:MIN:%5.1lf%s GPRINT:aggregate:MAX:%5.1lf%s GPRINT:aggregate:AVERAGE:%5.1lf%s'\n' COMMENT:'\n' HRULE:0#555555

RRDTool Files Used

/home/observium/rrd/ssf-nas-is7.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-rwc-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-rwc-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-rwc-is4.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/ssf-arch-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/rnunsis01.tot.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-rwc-is5.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-rwc-is6.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/ridnsis02x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-vv-is3.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-vv-is2.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/ssfnsispredrep01.sc1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/ssf-m01-is01.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/ssf-m02-is02.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/rlfnsis01.lif.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/ridnsis05x.ind.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

/home/observium/rrd/nas-b41-is1.foo.bar/oid-enterprises.12124.1.2.2.4.0-GAUGE.rrd

On Fri, Oct 27, 2017 at 11:20 AM Adam Armstrong adama@observium.org wrote:

> It works fine for me, both graphtypes on both oid types. > > btw, that isn't a numeric OID, the OID name is wrong (it's missing > the index) and that description is much longer than intended :P > > If you click on the graph and then get the graph browser to give you > the rrd output, you might get some useful information. > > adam. > > On 2017-10-26 05:40:36, Jesper Frank Nemholt jfn@dassic.com wrote: > Hi! > > Upgraded and now it breaks the stacked and combined line graphs. The > individual graphs themselves are OK. > > It seems to be across the board on all combined graphs and not > specific to the example attached (custom OIDs for EMC Isilon) > > > /Jesper > > _______________________________________________ observium mailing > list observium@observium.org > http://postman.memetic.org/cgi-bin/mailman/listinfo/observium > > _______________________________________________ > observium mailing list > observium@observium.org > http://postman.memetic.org/cgi-bin/mailman/listinfo/observium > _______________________________________________ observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

_______________________________________________ observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium

---

observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium
