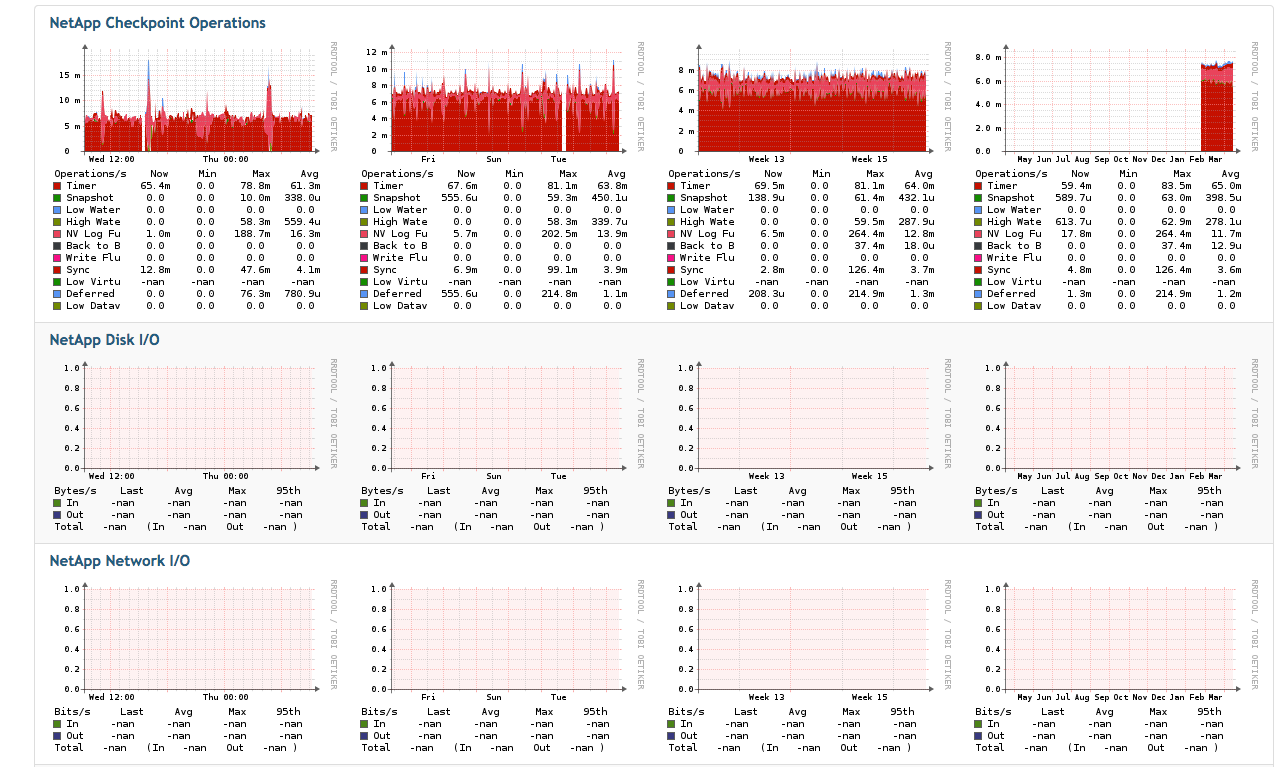

Apologies. I have attached a screenshot of part of the Observium Graphs page for one of our NetApp devices. You can see in the image that some of the graphs are displaying properly, but not all of them.

Thanks.

-Pete

On 2015-04-16 04:59, Adam Armstrong wrote:

No one will understand what you're talking about, so no one will reply. Include screenshots.

adam.

Sent from Mailbird [1]

...

On 16/04/2015 00:43:08, Peter Loron peterl@standingwave.org wrote:We're running Observium Pro 0.15.4.6386, and I have added our NetApp 2230 filers. The filers are running v8.2.2 Cluster. I'm getting some

data, but the graphs in Observium for Network I/O and Disk I/O are all NaN.

Any ideas?

I'm willing to poke into the issue (bad interpretation of returned values? Need updated OID?), but not sure where to start.

Thanks.

-Pete

Forgot to mention that I'm still running the v7 ONTAP releases. What ONTAP version/mode are you running? -- Cameron Moore

-----Original Message----- From: observium [mailto:observium-bounces@observium.org] On Behalf Of Moore, Cameron Sent: Thursday, April 16, 2015 8:24 AM To: Observium Network Observation System Subject: Re: [Observium] NetApp filer graphs for Disk IO and Network IO are all NaN

I'm running a FAS3210, and all of the NetApp graphs are working fine for me: NetApp Checkpoint Operations, NetApp Disk I/O, NetApp Network I/O, NetApp Operations, and NetApp Tape I/O. -- Cameron Moore

-----Original Message----- From: observium [mailto:observium-bounces@observium.org] On Behalf Of Peter Loron Sent: Wednesday, April 15, 2015 6:43 PM To: observium@observium.org Subject: [Observium] NetApp filer graphs for Disk IO and Network IO are all NaN

We're running Observium Pro 0.15.4.6386, and I have added our NetApp 2230 filers. The filers are running v8.2.2 Cluster. I'm getting some data, but the graphs in Observium for Network I/O and Disk I/O are all NaN.

Any ideas?

I'm willing to poke into the issue (bad interpretation of returned values? Need updated OID?), but not sure where to start.

Thanks.

-Pete

I'm assuming they changed OIDs in v8. I won't have a v8 system until later this year. If you want to dig into Observium, look at includes/polling/os/netapp.inc.php. You can see the SNMP OIDs we're using (ie. "misc64DiskReadBytes"). We may have to detect the cluster mode to know which OIDs to poll. -- Cameron Moore

-----Original Message----- From: Peter Loron [mailto:peterl@standingwave.org] Sent: Thursday, April 16, 2015 11:00 AM To: Observium Network Observation System Cc: Moore, Cameron Subject: Re: [Observium] NetApp filer graphs for Disk IO and Network IO are all NaN

We're running 8.2.2 Cluster Mode.

-Pete

On 2015-04-16 06:25, Moore, Cameron wrote:

Forgot to mention that I'm still running the v7 ONTAP releases. What ONTAP version/mode are you running? -- Cameron Moore

-----Original Message----- From: observium [mailto:observium-bounces@observium.org] On Behalf Of Moore, Cameron Sent: Thursday, April 16, 2015 8:24 AM To: Observium Network Observation System Subject: Re: [Observium] NetApp filer graphs for Disk IO and Network IO are all NaN

I'm running a FAS3210, and all of the NetApp graphs are working fine for me: NetApp Checkpoint Operations, NetApp Disk I/O, NetApp Network I/O, NetApp Operations, and NetApp Tape I/O. -- Cameron Moore

-----Original Message----- From: observium [mailto:observium-bounces@observium.org] On Behalf Of Peter Loron Sent: Wednesday, April 15, 2015 6:43 PM To: observium@observium.org Subject: [Observium] NetApp filer graphs for Disk IO and Network IO are all NaN

We're running Observium Pro 0.15.4.6386, and I have added our NetApp 2230 filers. The filers are running v8.2.2 Cluster. I'm getting some data, but the graphs in Observium for Network I/O and Disk I/O are all NaN.

Any ideas?

I'm willing to poke into the issue (bad interpretation of returned values? Need updated OID?), but not sure where to start.

Thanks.

-Pete _______________________________________________ observium mailing list observium@observium.org http://postman.memetic.org/cgi-bin/mailman/listinfo/observium
